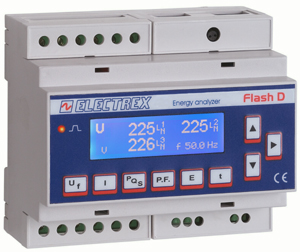

FLASH D6 85÷265V ENERGY ANALYZER Cod. PFE430-00 Dot-matrix LCD display with backlight. Single-phase, 2-phase, balanced or unbalanced 3-phase (max. 500V ph-ph), 2, 3 & 4 wire, LT and HT systems, ../1-5A CT input. Class 1 accuracy on energies (EN61036). RMS measurement up to the 31st harmonic. Equipped with 2 digital outputs programmable for Alarm or Pulse transmission (or as remote Output devices) and with 2 expansion ports for connection of external transmission modules. Modbus protocol. Suitable for harsh environment. Temperature range –20+60°C. DIN rail mount 6 modules |
CONTACTS
Tel: +39 0522 924244
Fax: +39 0522 924245
Newsletter
Highlights
Energy Analysers (Harmonics)
Large high-contrast lcd display with backlight.
Single-ph, 2-ph, balanced or unbalanced 3-ph (max. 500v ph-ph), 2, 3 & 4 wire, lt and ht systems, ../1-5a ct input.
Class 1 accuracy on energies (en61036). rms measurement up to the 31st harmonic. 2 digital outputs for alarm or pulse transmission (or as remote output devices) and with 2 expansion ports. modbus protocol.
Upgradeable firmware. suitable for harsh environment. temp. range –20+60°c.
3 years warranty
