The Electrex wireless devices transcieve the data via radio waves at a frequency of 2.4GHz using the E-Wi protocol (based on the IEEE 802.15.4 standard).

The wireless monitoring and management networks may be composed from the following devices:

Yocto net Coordinator E-Wi:
Coordinator node of the E-Wi protocol wireless network. Transcieves the data via radio waves. Network bridge between the Ethernet port and Modbus ports used to communicate with the Electrex instruments via RS485 and TTL. LCD backlight display. 2 digital inputs and 2 digital outputs. DIN rail mount 4 modules. Power supply 9÷36Vac / 12÷60Vdc.

Yocto net Router E-Wi:
Router node of the E-Wi protocol wireless network with expandable functions. Transcieves the data via radio waves. Network bridge between the Ethernet port and Modbus ports used to communicate with the Electrex instruments via RS485 and TTL. LCD backlight display. 2 digital inputs and 2 digital outputs. DIN rail mount 4 modules. Power supply 9÷36Vac / 12÷60Vdc.

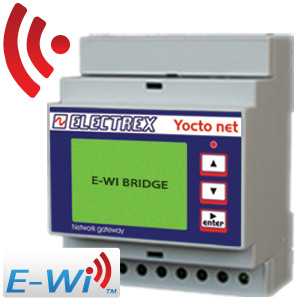

Yocto Bridge E-Wi:
Bridge node of the E-Wi wireless network with not expandable functions. Transcieves the data via radio waves. Network bridge between the Ethernet port and Modbus ports used to communicate with the Electrex instruments via RS485 and TTL. LCD backlight display. 2 digital inputs and 2 digital outputs. DIN rail mount 4 modules. Power supply 9÷36Vac / 12÷60Vdc.

Femto E-Wi, Atto E-Wi, Zepto E-wi and the Deca Sensor E-Wi:
the E-Wi wireless devices meters and sensors for all kind of energy measurements, environmental parameters and process parameters.
