The integration of renewable energy sources and storage in buildings and the distribution grid creates a need for sophisticated control and monitoring systems to ensure efficient energy management and grid stability.
These systems provide real-time data and decision-making capabilities that empower building owners and operators to optimize energy consumption, reduce costs, and enhance resilience.
Therefore, not just the measurement but also the communication systems are becoming increasingly relevant. They become more important as there are more PV systems. In the past, installations used to be planned according to the “fit and forget” principle and PV systems were connected to the grid in an uncontrolled manner.
Today, PV systems with active power management should be actively controlled, based on the system conditions.
Some controls such as feed-in limitation, dynamic voltage limitation or even frequency control can be implemented locally without communication. However, if PV systems are integrated into the overall system and operated to optimize the distribution and transmission grid, supervision systems are necessary.
Electrex can support you in the creation of a complete supervision and management system for photovoltaic systems (including multi-site ones).
Electrex monitoring and management systems allow a continuous control of the functioning of each component (inverter, panels, strings, etc.) in order to avoid total or partial production stops and at the same time allow the energy produced and/or used for production activities to be measured and managed.
Electrex monitoring and management systems can act as a single director of the various components of the systems, regardless of their type, allowing you to manage various functions.
A single supervision system can benefit photovoltaic, storage, and self-consumption since it will:
- Optimize energy production: The system can track solar irradiance and other environmental factors to determine the optimal time to generate electricity. It can also adjust the inverter settings to maximize power output.
- Manage energy storage: The system can track the state of charge of the storage system and optimize its use to meet energy needs. It can also switch between using grid power and stored energy to minimize energy costs.
- Promote self-consumption: The system can analyze energy consumption patterns and suggest ways to reduce reliance on grid power. It can also schedule energy-intensive appliances to run when solar power is available.
Track your energy use and production to spot issues quickly and make smart choices
Keeping the PV system under control is essential for ensuring a high and constant return and to cover the cost of the investment in the shortest possible time. Electrex monitoring and management systems allow you to acquire instant and historical data including, for example, the energy withdrawn and injected into the electricity grid, your specific KPIs (Key Performance Indicator), total energy production, etc.
In order for the yield to be maximum and constant, the individual photovoltaic panels that make up the system must function correctly. A faulty or unproductive panel compromises the correct functioning of the entire string and consequently of the system. The causes can be multiple: dirty cells, shading, poor power quality, etc.
Because PV inverters can affect power quality, it’s recommended to monitor and measure power quality disturbances, especially harmonics and imbalance.
Predictive maintenance and remote control
Electrex monitoring and management systems allow you to exploit the benefits of predictive and/or preventive maintenance of a production plant. Thanks to the continuous acquisition of data and the generation of appropriate notifications it is possible to manage the maintenance by knowing the real operating conditions of the system.
The interventions are therefore no longer at regular intervals but based on the actual operating conditions and before the occurrence of faults, significantly reducing costs and repair interventions.
Interconnection and integration between devices (inverters, storage systems, etc.) and systems (heat pumps, electric vehicle charging stations) of any brand
Electrex monitoring and management networks allow you to integrate the equipment present in the system (inverters, storage systems, etc.) of any brand in order to create a system that allows continuous control of the functioning of each component.

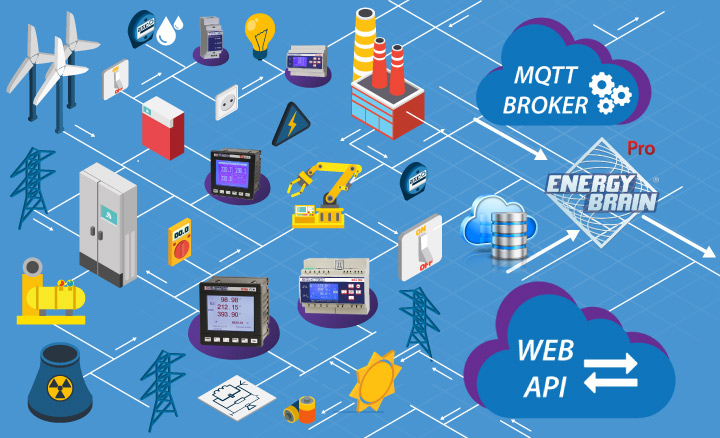

Intelligent and shared data management makes the difference in terms of efficiency and operational and decision-making speed. It is essential that remote management and interconnection are achieved using connections and protocols based on documented, publicly available and internationally recognized specifications (Modbus RTU o TCP-IP, HTTP, MQTT, JSON, Web API, ecc.).
The result is the creation of an integrated digital ecosystem that can be controlled remotely.
The Electrex IoE digital platform allows you to control and manage systems and buildings by combining the aspects of Monitoring ed Energy Automation, in which Electrex has been the market leader for years, to the possibility of interacting in real time on different devices using the possibilities offered by IoT systems.
For example in a grid-connected photovoltaic installation, a control system is needed to manage the flow of electricity between the solar panels, the storage system, and the grid. The control system should be able to do the following:
- Limit PV production to prevent excess power from being sent to the grid.
- Maintain a healthy power factor at the point of grid connection to avoid penalties.
- Shift energy-intensive loads to the time of day when solar power is most abundant.
- Be compliant for demand response programs, which require the system to reduce or increase energy consumption during certain times of the day. This can be effectively achieved using storage or multiple generation sources.
Simplification of installation using a specific pre-configured kit

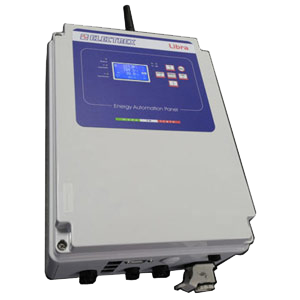

The Electrex monitoring kit based on the Libra devices designed for photovoltaic systems represents the Plug & Play solution with advanced technology for monitoring and managing any component of the system:
- inverters, strings, storage, etc.
- low and medium voltage electrical loads
- power quality analysis
- direct current measurement,
- environmental and process parameters.
The Libra panels have internal, multiple modules that are configured based on the needs of the system and allows a quick, simple and non-invasive installation.
With a single device it is therefore possible to record the energy produced, consumed, exchanged as well as integrate the data of the inverters or any other device in the field in order to keep every single panel under control and optimize its performance.

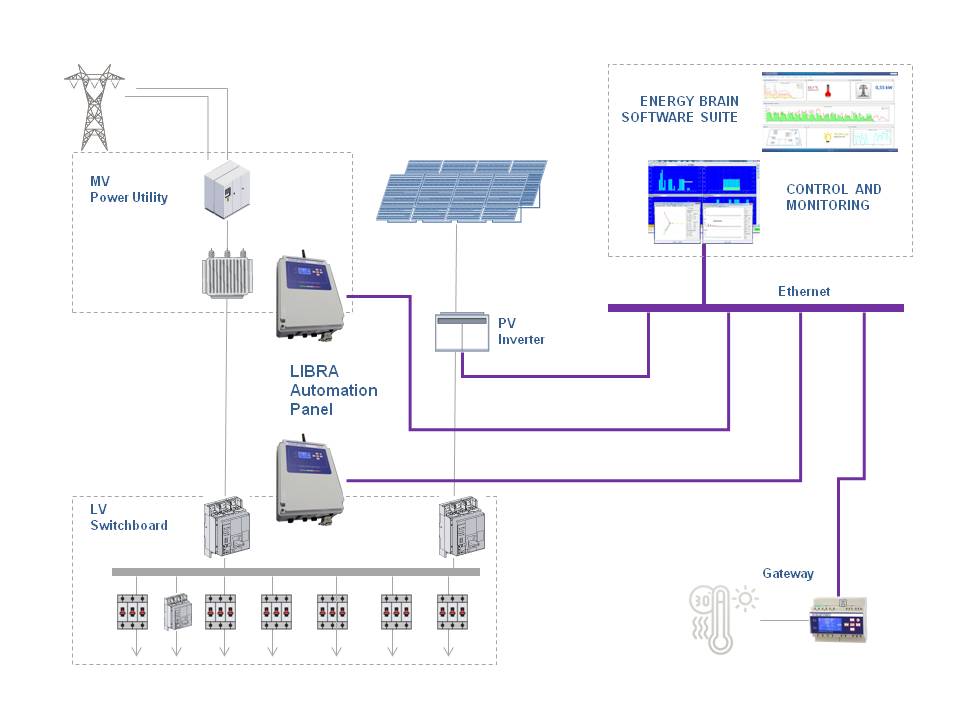

It is possible to integrate the Libra into an existing Electrex monitoring system, or use it as a system head or starting point for more complex supervision systems thanks to the possibility of connecting other Electrex devices to an RS485 subnetwork and/or to an Ethernet network.
Contact me to schedule a call! I will be glad to answer any questions you may have.
