PFATRRQ-00B SENSOR BUS RJ BLACK BOX T H L B

Ambient Temperature, Relative Humidity, Luminosity and Pressure sensor for the Deca Sensor TE BUS, Net series with built-in SI BUS module, Libra and RS485 Node SI series. Temperature: measure range -20°C .. +80°C (wider range on request); typical accuracy of ±0,2°C. Relative Humidity: typical accuracy ±1,8%. Luminosity: configurable for indoor [...]

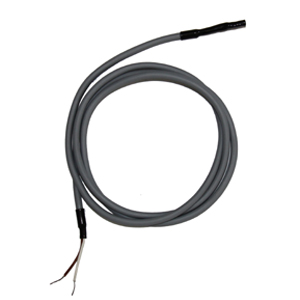

PFAT4AQ-00 SENSOR BUS NAKED T 0,2

Temperature TE sensor for the Deca Sensor TE BUS, Net series with built-in SI BUS module, Libra and RS485 Node SI series. Temperature by contact (typical accuracy of 0,2°C): measure range -20°C .. +80°C. No external case. Wired, 1 m Cat. 5E cable. Addressable from 1 to 4.

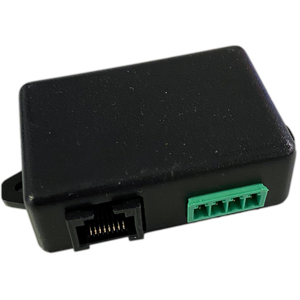

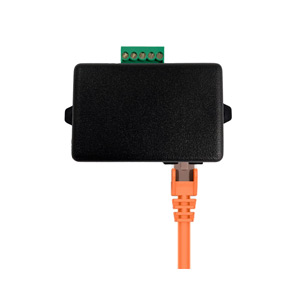

PFATR01-T4 RS485 NODE 12VDC SI

RS485 node with BUS for connecting Sensor Bus environmental sensors (various sensor combinations and up to 8 measurements, eg 8 Temperature or 3 Temperature and Relative Humidity plus 2 Temperature sensors). Internal terminals for RS485 network. Black box size: 38x73x20 mm. 12Vdc power supply that can be supplied through the [...]

PFATR0Q-CE BUS RJ BOX 3,3VDC 4DO 4COMMON

Box equipped with 4 optoisolated transistor 27Vdc 27mA digital outputs according to DIN 43864 with separate common terminals. The outputs can function as remotely controlled output units. Black box size: 38x73x20 mm. 3.3VDC power supply from SIO bus equipped devices. The output circuits require external power supply (eg 12Vdc or [...]

PFATR0Q-BE BUS RJ BOX 3,3VDC 4DI 4COMMON

Box equipped with 4 optoisolated digital status and / or counting inputs and separate common terminals. Black box size: 38x73x20 mm. 3.3VDC power supply from SIO bus equipped devices. The input circuits require external power supply (eg 12Vdc or 24Vdc).

PFATR0Q-DE BUS RJ BOX 3,3VDC 2DI 2DO 4COMMON

Box with 2 inputs and 2 optoisolated digital outputs with separate common terminals. The inputs are for status and / or counting purpose. The outputs are 27Vdc 27mA transistors type according to DIN 43864 and can function as remotely controlled output units. Black box size: 38x73x20 mm. 3.3VDC power supply [...]

PFAT0Q-7E BUS RJ BOX 3,3VDC 2RO CL 250V 2A

Box equipped with 2 relay outputs with exchange contact capable of controlling loads up to max 250Vac and 2A resistive. 3.3VDC power supply from devices equipped with SIO bus. Black box size: 38x73x20 mm.

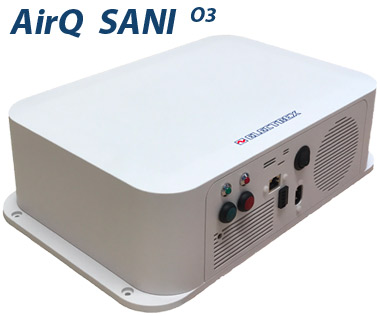

PFATH2JS02W AirQ SANI O3

Integrated system for the sanitization through the production of Ozone of environments and surfaces and the monitoring of environmental parameters, the local data-logging and the publication of Dashboards / Graphs for the rapid identification of the healthiness of the environments. Equipped with a powerful 10,000 mg / h OZONE generator. [...]

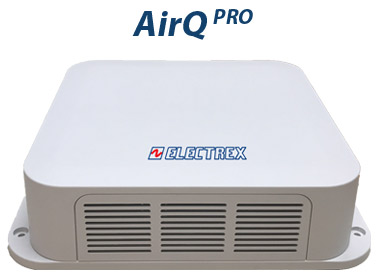

PFATJ3J-04W AirQ Pro

Integrated system for monitoring and managing Indoor Air Quality, local data-logging and publication of Dashboards / Graphs for the rapid identification of the healthiness of the environments. AirQPro can be configured as a Master or Slave allowing you to create networks made up of several AirQs. The connection can be [...]

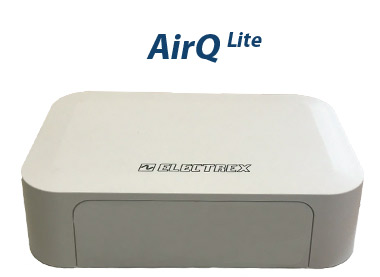

PFATM1I-04W AirQ Lite 868

Integrated system for monitoring and managing Indoor Air Quality, local data-logging and publication of Dashboards / Graphs for the rapid identification of the healthiness of the environments. AirQLite E-Wi 868 can be inserted inside a network as a Slave of an AirQPro using an 868MHz wireless connection via an AirQ [...]
