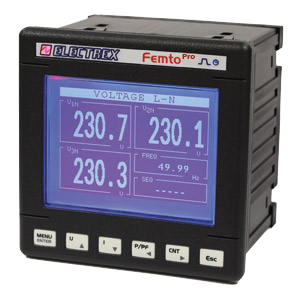

Single/Three-Phase Energy Analyzer (up to 3 single-phase lines).
Accuracy class 0.5S, inclusive of the external ECT current transformers (not included in the package), e.g. 100A model code PFAE000-09.
Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase.
Includes phase sequence detection and configuration.
Features four operating timers and eight configurable alarms, including support for complex logic conditions.
Equipped with a graphical LCD display and a calibration LED.
Communication via Modbus-RTU RS485.
Firmware remotely upgradeable and expandable through PUK codes for future upgrades even after installation.
Panel mounting dimensions: 96 × 96 mm.
Power supply: 230–240 VAC.
Complies with standards EN 50470-1 and EN 50470-3.
