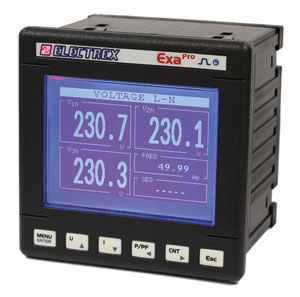

PFAE9-10102-E00 EXA PRO 96 5A RS485 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Single/Three-Phase Energy Analyzer suitable for harsh environments. Connection via CTs ../5A or ../1A (not included). Accuracy class 0.5S. Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Includes phase sequence detection and configuration. Features four operating [...]

PFAE9-1H102-E00 EXA PRO 96 5A RS485 H 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Harmonic & Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to the 31st [...]

PFAE9-1B102-EM0 EXA PRO 96 5A RS485 H PQ LOG ENERGY 230-240V

Harmonic & Power Quality Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to [...]

PFAE9-1B1Z2-EMF EXA PRO 96 RS485 FULL 230-240V SIO ENERGY ANALYZER HARMONIC & POWER QUALITY

Harmonic & Power Quality Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to [...]

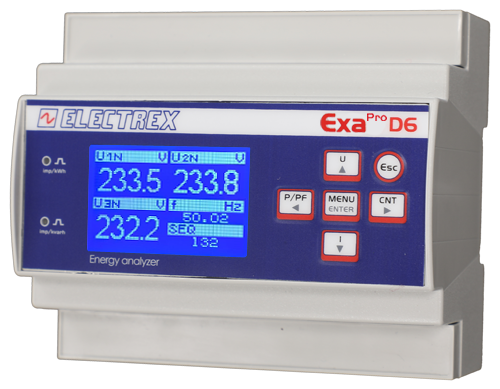

PFAE6-10102-E00 EXA PRO D6 5A CLAMP RS485 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Single/Three-Phase Energy Analyzer suitable for harsh environments. Connection via CTs ../5A or ../1A (not included). Accuracy class 0.5S. Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Includes phase sequence detection and configuration. Features four operating [...]

PFAE6-1H102-E00 EXA PRO D6 5A CLAMP RS485 H 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Harmonic & Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to the 31st [...]

PFAE6-1B102-EM0 EXA PRO D6 5A CLAMP RS485 H PQ LOG ENERGY 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Harmonic & Power Quality Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to [...]

PFAE6-1B1Z2-EMF EXA PRO D6 5A CLAMP RS485 FULL 230-240V SIO ENERGY ANALYZER HARMONIC & POWER QUALITY

Harmonic & Power Quality Energy Analyzer suitable for harsh environments. Accuracy class 0.5S. Connection via CTs ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Performs single harmonic analysis up to [...]

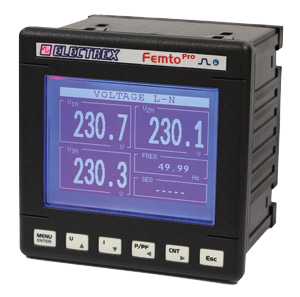

PFA69-E0102-E00 FEMTO PRO 96 ECT RS485 230-240V ENERGY ANALYZER

Single/Three-Phase Energy Analyzer (up to 3 single-phase lines). Accuracy class 0.5S, inclusive of the external ECT current transformers (not included in the package), e.g. 100A model code PFAE000-09. Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per [...]

PFA69-EH102-E00 FEMTO PRO 96 ECT RS485 H 230-240V ENERGY ANALYZER HARMONIC & POWER QUALITY

Single/Three-Phase Energy Analyzer (up to 3 single-phase lines). Accuracy class 0.5S, inclusive of the external ECT current transformers (not included in the package), e.g. 100A model code PFAE000-09. Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per [...]
