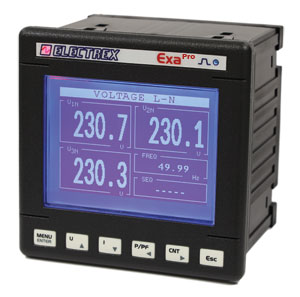

Harmonic & Power Quality Energy Analyzer suitable for harsh environments.
Accuracy class 0.5S.
Connection via CTs ../5A or ../1A (not included).
Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase.
Performs single harmonic analysis up to the 31st order on the three phase voltages and three line currents in real time.
Integrated datalogger for recording four harmonic components, total and per-phase energy counters, and average, minimum, and maximum values of voltage, current, power, and frequency.
Records and stores voltage events (interruptions, sags, and swells) for power quality analysis.
Includes phase sequence detection and configuration.
Features four operating timers and eight configurable alarms, including support for complex logic conditions.
Equipped with a graphical LCD display and a calibration LED.
Communication via Modbus-RTU RS485.
SIO Bus port for integration of Milli Pro I/O and Milli Pro Sensor expansion modules with additional inputs/outputs and/or environmental sensors.
Firmware remotely upgradeable and expandable through PUK codes for future upgrades even after installation.
Panel mounting dimensions: 96 × 96 mm.
Power supply: 230–240 VAC.
Complies with standards EN 50470-1 and EN 50470-3.
